NewTek TriCaster Mini HD-4i Bundle

16 - 6 external, 6 internal, 4 M/E buses

4 simultaneous live video sources over HDMI, with per-input auto-detection of format, resolution, and frame rate

• Per-input scaler (including 3:2 intelligent pull-down) and frame synchronizer enabling intermixing of formats
• Per-input color correction, crop and LiveMatte keyer controls
• Support for Key + Fill input pairing

2 live inputs via Gigabit connection, selectable from any available network sources with support for video, audio and alpha channel

• Supported sources include networked computers via included NewTek iVGA client application; wireless Apple. AirPlay. devices; TriCaster 8000, 860, 460, 410 or Mini; 3Play 4800, 440 or 425; USB video sources; video over IP sources; RTMP or RTSP streams; HTTP streaming video sources; and a variety of third-party partner solutions

Access up to 4 live Pan-Tilt-Zoom (PTZ) robotic cameras via standard serial and network protocols, with native preset system and user interface control over camera orientation, zoom, focus and iris

5 integrated digital media sources for video, graphics and sounds (2 DDRs, 2 GFX and Sound) + 15 buffers

15 still and title buffers, with multiviewer, title editing and presets

• Shareable across a network for watch folder application, with real-time edit and update of content

4 freely configurable M/E channels for video mixing, compositing, effects and virtual sets, each supporting independent Key layer, TransWarp effects, and Adobe. Photoshop. blending mode effects

• Mix mode: Enables secondary switcher operation for output, submix or recording, with Program/Preview workflow and transitions
• Effects mode: Enables multi-layer compositing, effects generation and virtual set application, with per-source 3D DVE, scaling, cropping and keying

Record configurations and operation sequences, then attach to keyboard shortcuts, control surface actions, MIDI controllers, or on-screen hotspots for recall and automation

• Macro editor for modifying user-defined macro configurations and sequences
• Augment and extend TriCaster operation using macro plug-ins to control external devices and applications
• Enable cross-platform commands and automation between TriCaster and 3Play

2 primary DSK channels, plus 1 additional Key layer per M/E bus, each with independent transition controls, 3D DVE, scaling, cropping and integrated TransWarp effects

Integrated TransWarp effects engine on all effects channels supports standard transitions, customizable animation store transitions with audio, and overlay effects

• Animation Store Creator for custom animations
• Supports per-pixel alpha blending between sources and real-time 3D warping of video or graphic

30+ HD live virtual sets, with presets, multiple camera angles, real-time reflections, and specular highlights

• Live pan and zoom of virtual camera and customizable virtual camera presets with animated pan, zoom and pedestal moves
• Support for up to 2 switchable live sources, with per-source 3D DVE, scaling, cropping and keying
• Supports custom-created virtual sets generated using NewTek Virtual Set Editor or third-party partner solutions

Support for custom virtual environments generated from panoramic smartphone, camera or DSLR images

• Select sets included; custom sets require Virtual Set Editor 2.5

Up to 8 freely configurable, interactive hotspots per input for macro control

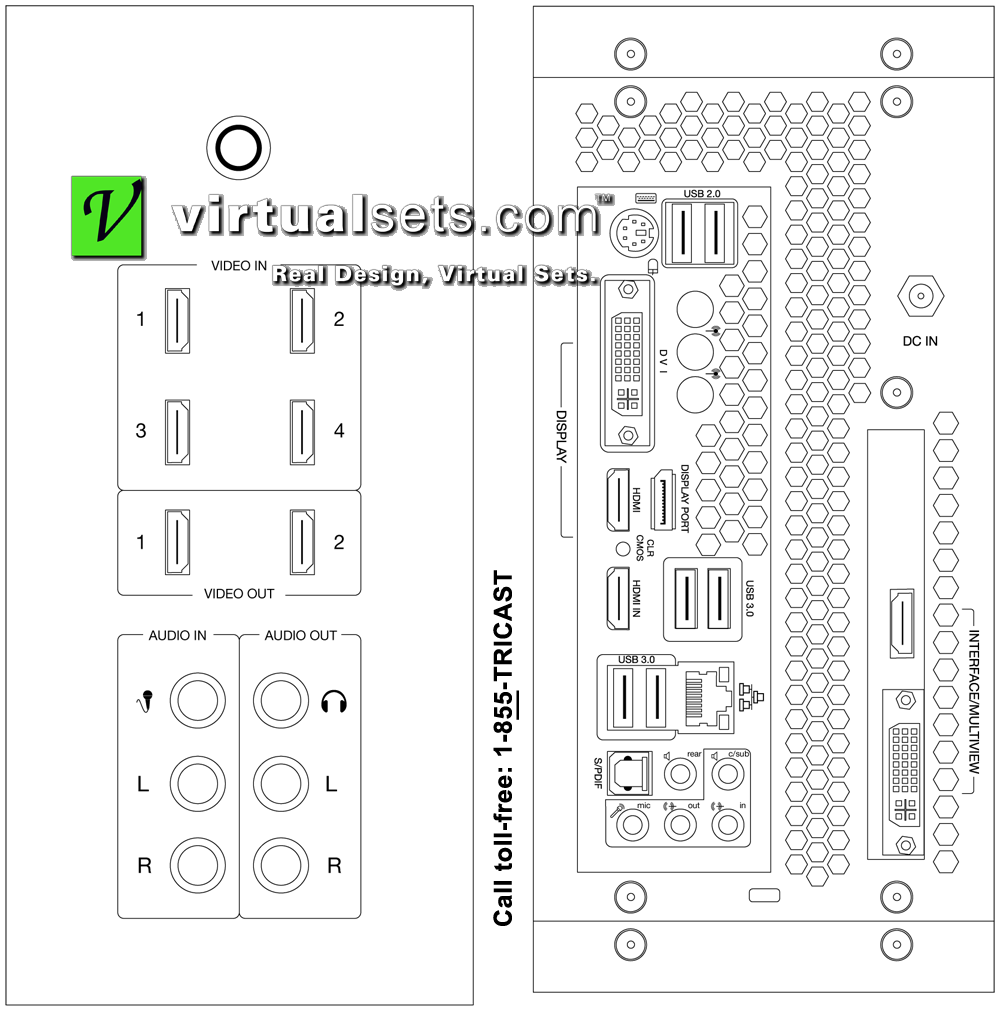

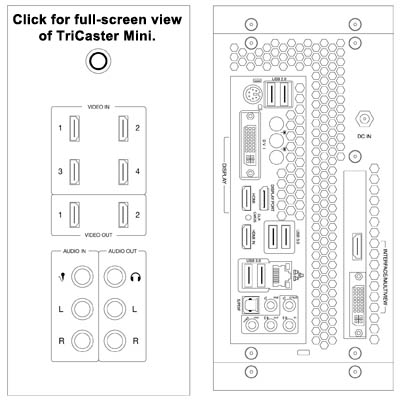

Configurable for up to 6 output connections (plus Case Display**), with support for key output and per-connection signal settings

• 2 x HDMI (primary)
• 1 x DVI and 1 x HDMI (video only) display ports for driving displays or projectors
• Network output for live streaming
• A/V output to network-connected TriCaster over local network

Multi-track, multi-format recording of up to 4 simultaneous channels via IsoCorder technology

• Native recording in up to 1080p with timecode
• Encoding format selectable from: QuickTime. (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio), MPEG-2 (high or normal profile), AVI (SpeedHQ), and H.264 (high or Web quality)
• Freely choose to add recordings to Publish queue and DDR destinations

TriCaster Mini HD-4i: 2 x 750GB internal drives accommodating a total of ~30 hours 1080i (varies by resolution and format; capacity expandable using additional supported storage)

• Simultaneous recording of up to 4 channels (2 channels per drive) to included storage or other supported storage configurations
• Supports shared storage integration via third-party partner solutions

Grab full resolution, de-fielded still images from Program output, and freely choose to add grabs to Publish queue, Media Player presets and Buffer destinations

Supports direct content upload to YouTube., Facebook, Twitter., FTP, local or external volumes, and network servers

HD live streaming with simultaneous archive

• Presets in up to 720p, supporting most common streaming profiles and custom multi-bitrate streaming profiles, including RTMP streaming using H.264 (ex. Adobe. Flash. Media Server), Microsoft. Windows Media. Push/Pull, and browser-based streaming applications, with Ustream. and Livestream. native integrated support
• Streaming Profile Manager with integrated Web browser

4 HDMI Embedded
1/4. Mono (Mic)
1 x 2 Stereo 1/4. (Line)

2 HDMI Embedded
1 x 2 Stereo 1/4. (Line)
1/4. Stereo (phones)

Integrated multi-channel audio mixer for internal and external audio sources, outputs, record, stream and headphones, with support for Master and Aux output mixes

• Pan control, solo auditioning, seven-band equalizer and stereo compressor/limiter per input and output, with per-input audio delay control
• Multi-bus routing of audio source channels to any combination of outputs, with independent level control over channels 1/2 and 3/4 for quad sources
• Audio Follow Video system enabling audio to follow multiple video sources, with support for unlimited audio grouping combinations
• Digital audio inputs equipped with audio time-base synchronizers
• Supports companion iPad. audio mixing app acnd Avid. Artist Mix audio control surface

NTSC model: 1080/30p, 1080/60i, 720/60p, 720/30p, 480/60p

AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG (1, 2, all profiles, program or transport streams), MP4, WMV, WebM, PSD, PNG, TGA, BMP, JPEG, EXR, RAW, TIF, AIFF, MP3, WAV, and more, with Import Media application for batch import with optional transcoding of files (including Apple ProRes)

Export media application for batch copying with optional transcoding of files to compatible formats for different applications and devices: Apple ProRes, AVI, DV, DVCPro, DVD, H.264, MOV, MPEG-2, MJPEG, MP4, WebM and more

• NewTek SpeedEDIT 2 non-linear editor available via download for Add-On installation
• NewTek SpeedHQ codecs for Mac and PC included for extended file compatibility

DVI and HDMI monitor outputs for user interface and multiview preview displays

• Preview all sources or select sources in a variety of layouts and dual-monitor display combinations via Workspaces control panel
• UI video windows freely configurable for any combination of input sources, Program, Preview, M/E buses, clocks or images
• A/V indicator and guide overlays configurable per UI video window
• Integrated case display** (source or output monitor only; external monitor required for user interface)

Integrated Waveform and Vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 601 and 709

Setup and store session settings in reusable template sessions

Ultra-low, between 1 and 2 frames

Video: 4:4:4:4, 32-bit Floating Point
Audio: 4 channels, 96 kHz, 32-bit Floating Point

Support for standard MIDI protocol enabling third-party MIDI device control of TriCaster operations via macros

7.0 in (17.8 cm) LCD screen with configurable output (source or output only; external monitor required for user interface)
(Case display available only on TriCaster Mini HD-4i model)

Supports wireless connection to local network for streaming, publishing and networking with external devices

• 802.11ac WiFi standard

Support for keyboard and mouse using wireless Bluetooth technology

• 4.6 x 9.2 x 7.9 in (11.7 x 23.4 x 20.1 cm)
• 9 lbs (4.1 kg)
• Multi-tiered software fail-safe
• Included cable retention bracket may double as handle

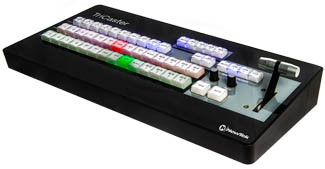

The TriCaster Mini CS is compatible with all current TriCaster models.

The Mini CS dimensions are (approx.) 16.6" x 8" x 3".

• TriCaster Mini CS Control Surface.
• One year manufacturer warranty.
• Lifetime phone and e-mail support.
• Free shipping.
• Lowest Price Guarantee.

The TC Mini HD-4 has one 750GB internal hard drive.

Two full HD recordings can be recorded on the internal 750GB hard drive.  A USB 3.0 external hard drive can be added to expand to a total recording capability of four full HD recordings.  These videos can be recorded in QuickTime, MPEG-2, AVI, or H.264 file formats.

The Mini HD-4 dimensions are (approx.) 9.2" x 7.9" x 4.6", 9 lbs.

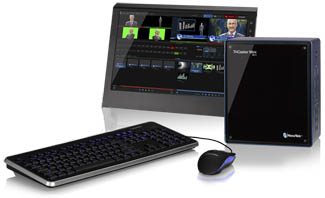

• TriCaster Mini HD-4 (one internal hard drive).
• 24" Full HD Monitor.
• Backlit keyboard and mouse.
• TriCaster Mini power cable.
• One year manufacturer warranty.
• Lifetime phone and e-mail support.
• Free shipping.
• Lowest Price Guarantee.

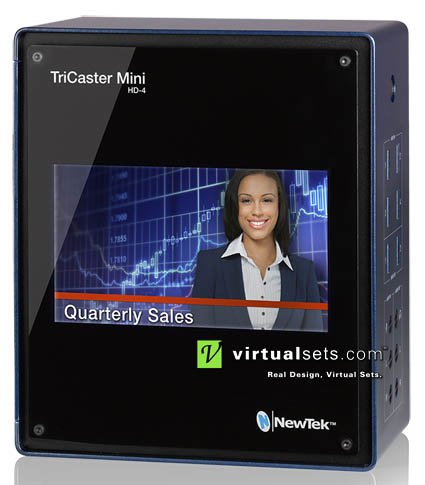

The TriCaster Mini HD-4i has an integrated 7" LCD screen that can display the program output, the preview output, any single switcher source, buffer, the waveform, vectorscope, or production clock.  An external monitor (which we include for free) is required for the interface display.

The TC Mini HD-4i has two 750GB internal hard drives.

Four full HD recordings can be recorded on the internal 750GB hard drives.  These videos can be recorded in QuickTime, MPEG-2, AVI, or H.264 file formats.

The Mini HD-4i dimensions are (approx.) 9.2" x 7.9" x 4.6", 9 lbs.

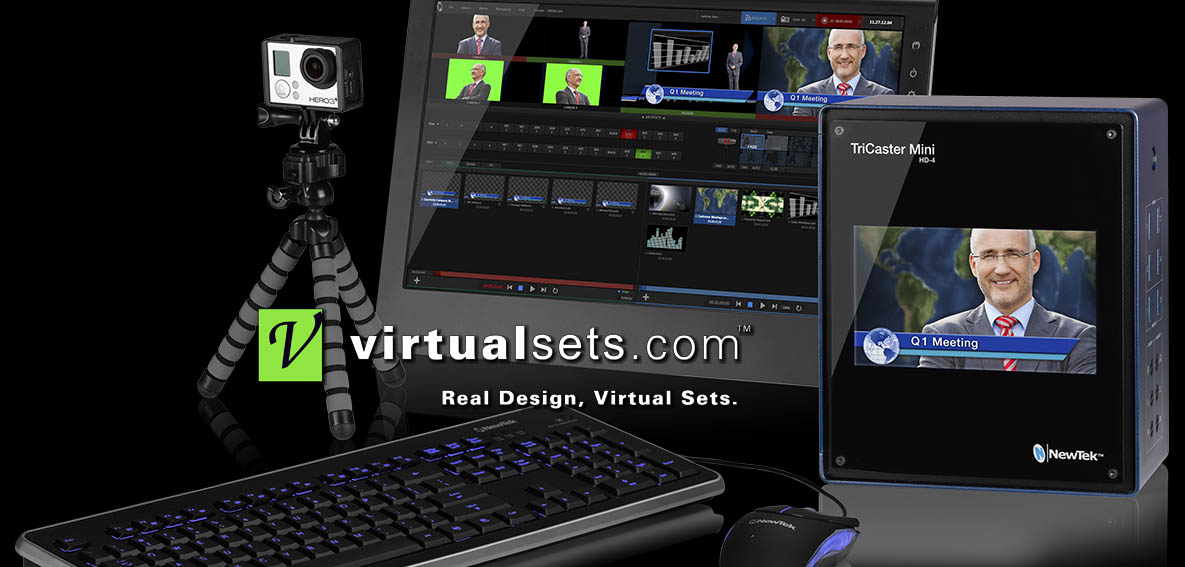

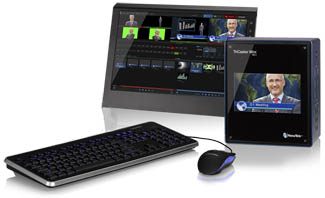

• TriCaster Mini HD-4i (integrated monitor & two internal drives).
• 24" Full HD Monitor.
• Backlit keyboard and mouse.
• TriCaster Mini power cable.
• One year manufacturer warranty.
• Lifetime phone and e-mail support.
• Free shipping.
• Lowest Price Guarantee.

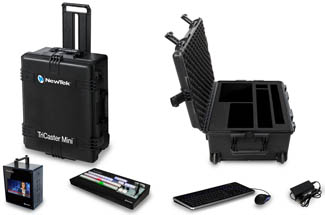

• TriCaster Mini HD-4i.
• TriCaster mini CS Control Surface.
• 24" Full HD Monitor.
• Hard-side travel case.
• Backlit keyboard and mouse.
• TriCaster Mini power cable.
• One year manufacturer warranty.
• Lifetime phone and e-mail support.
• Free shipping.
• Lowest Price Guarantee.

Supplemental HDMI Output

Supplemental Display Ports

Case Display*
